EPS 3D CNC Router Machine for Styrofoam Model Wood Statue Relief Carving

This is an EPS engraving machine adopts the linear tool changer with 8 tools to realize the processing of complex work pieces at one time.

* Contact us for latest price for customized machine according to your project's requirements of table formats, functions, etc.

Designed with new type thicker and bigger heavy duty, which can ensure the machine running smoothly.
Using dust proof system to ensure good lubrication performance of guide rail and screw.

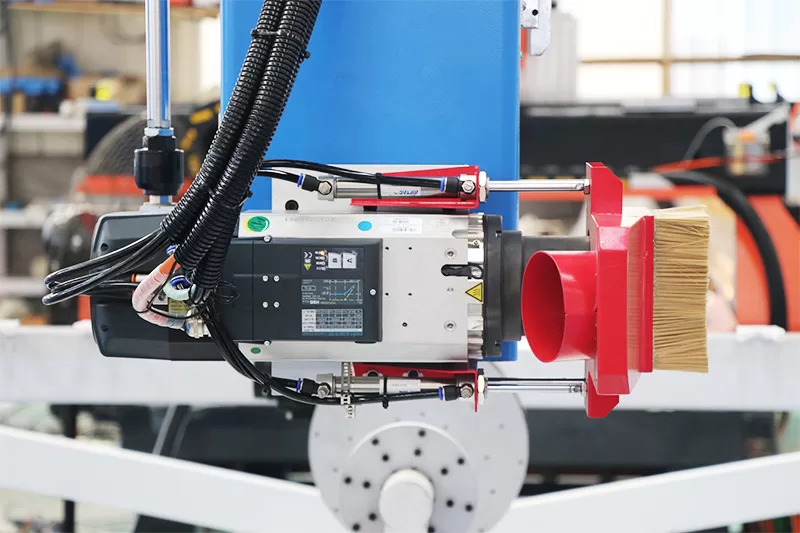

Adopting HSD air cooling spindle, it can realize flexible dialogue programming, and simple operation.
Equipped with servo motor and drive to ensure high speed and smooth operation.
Adopting linear automatic tool magazine with 8 tools to realize the processing of complex work pieces at one time, which greatly improves the processing efficiency.

Items	Description
Working area	1800x2400x1200mm for 3axis; 1000x2400x1200mm for 4axis;
Spindle	ATC 9.6KW Italy original HSD air cooling spindle
Spindle speed	6000-24000RPM
Inverter	Taiwan Delta B Model 11.0KW
Tool magazine	Liner 8pcs tool magazines/Carousel tool magazine with 8 tools
Control system	Taiwan SYNTEC21MA control system with MPG handle wheel
Motor and driver	Japan YASKAWA 1.3KW servo motor and drivers
Working Table	Aluminum T slot table
limit switch	Japan OMRON limit switch
Reducer	Japan Shimpo reducer
Voltage	380V,3phase, 50HZ
Dust collector	ISO30 tool holders with ER32 collect
