Best Price CNC 3D Wood Carving Machine, Fully Automated for Model Wood Designing

This foam machine was designed with linear tool change magazine,which can change automatically in the engraving process to save time.

* Contact us for latest price for customized machine according to your project's requirements of table formats, functions, etc.

This machine uses the Japanese Yaskawa servo motor, which has the advantages of high accuracy, fast speed and long service life and low noise.

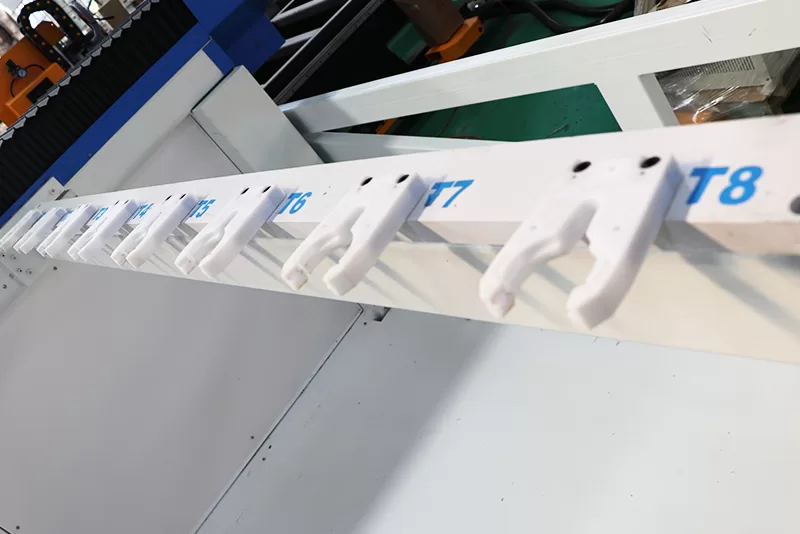

Equipped with a straight-row tool changer and four spindles that can be rotated 90 degrees for more flexible use.

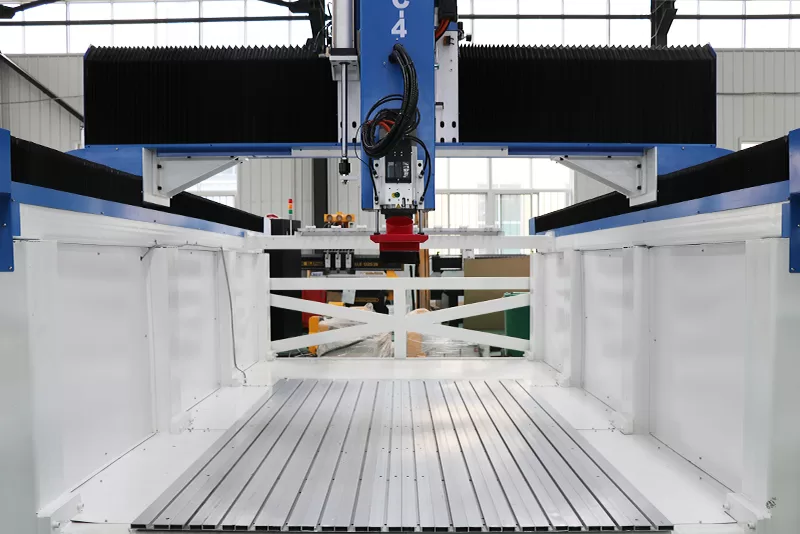

It has large working area and high z axis, which can realize a flexible workpiece machining.
1.5kw new double vacuum bag can clean the dust on the workpiece, which makes the processing more precise.

Description	Parameter
Working Area	1500x3000x1100mm

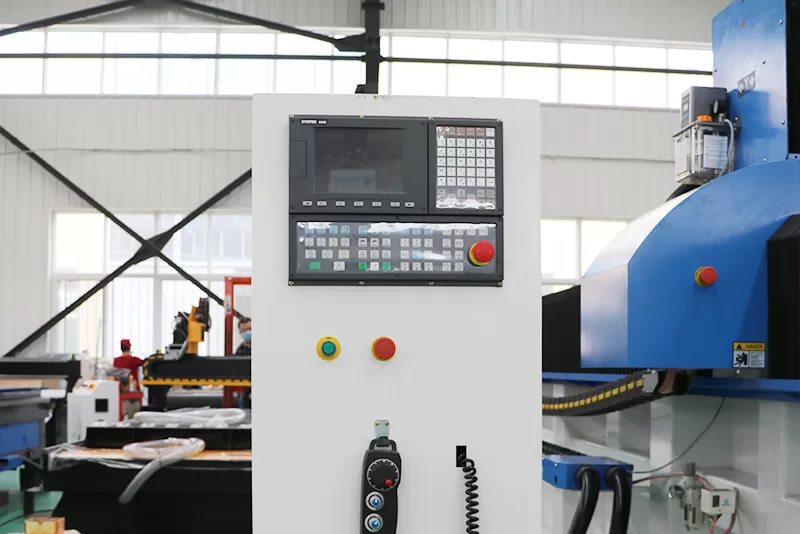

Control system	Taiwan SYNTEC control system
Voltage	380V, 3phase, 50Hz (Option)

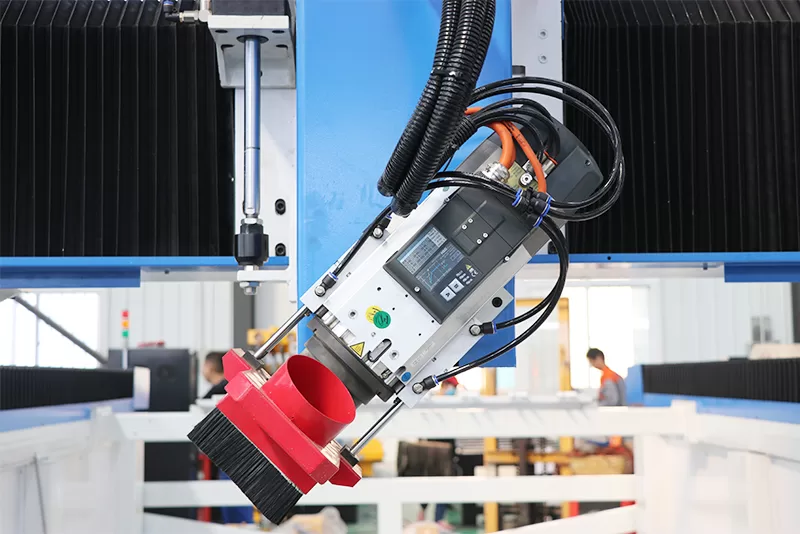

Spindle	9kw Italy HSD air cooling spindle
Inverter	11kw Taiwan DELTA inverter
Motor and driver	850W YASKAWA servo motor and 1kw YASKAWA driver, SHIMPO reducer
Table Surface	T-slot working Table
Lubrication system	Automatic lubrication system
Dust collection system	1.5kw new type double bag dust collection system
