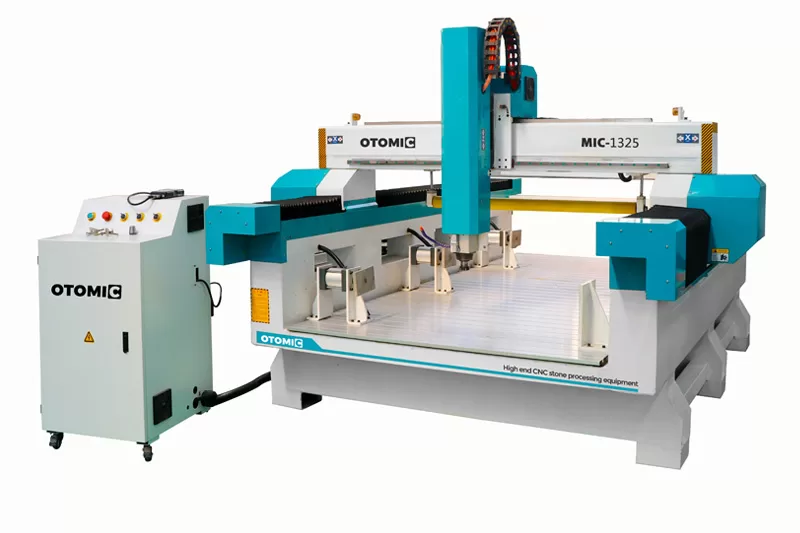

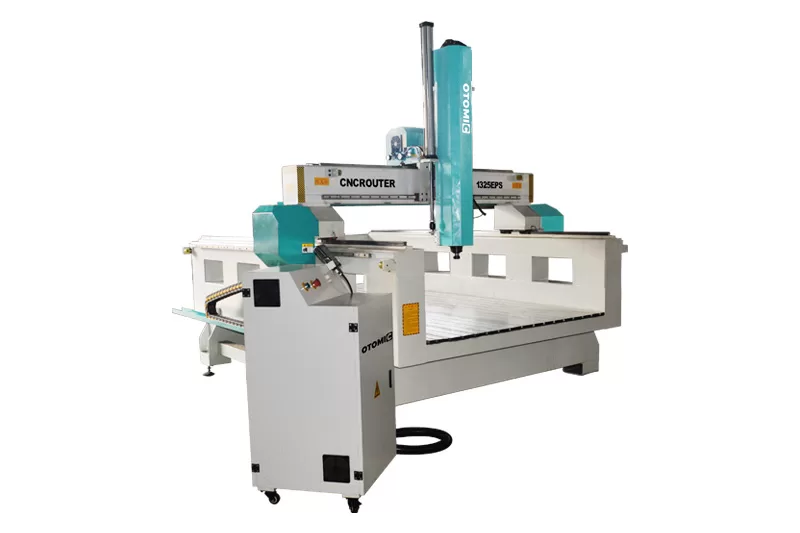

EPS 3D Carving Machine for Foam Cutting Milling
The foam engraving machine can engrave various large nonmetallic molds, and it is suitable for precise manufacture of casting wooden mold, food mold and other molds.
Features
- It is equipped with many good quality and world-class parts, including Taiwan HINWIN linear guide, Taiwan DELTA inverter, Japan YASKAWA servo driver, etc.
- Designed with the press roller, it can control the machine moving.
- With Japan YASKAWA servo system, it has the advantages of higher precision and big torque.
- Manufactured with Original Italy HSD spindle, it has many features of high speed and high efficiency.
- The Z axis and the whole working size can be heightened according to your special requirements.
Parameters
| Description | Parameter |
| Working Area | 1300x2500x700 mm |
| Frame | Divided structure bed structure ,Fixing with screws |
| Max. Power Consumption | (Without Spindle) 6Kw |
| Spindle | 7kw Italy HSD air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Motor | Japan 1.5W YASKAWA servo motor |
| Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| Inverter | E-type 7.5kw Taiwan Delta Inverter |
| Operating System | DSP A11 |
| X,Y Resolution | <0.01mm |
| Running Environment Temperature | 0 – 45 Centigrade |
