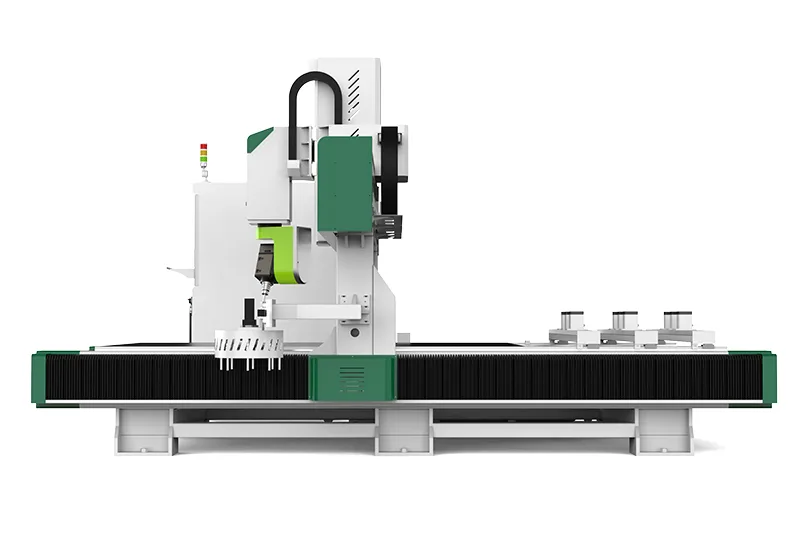

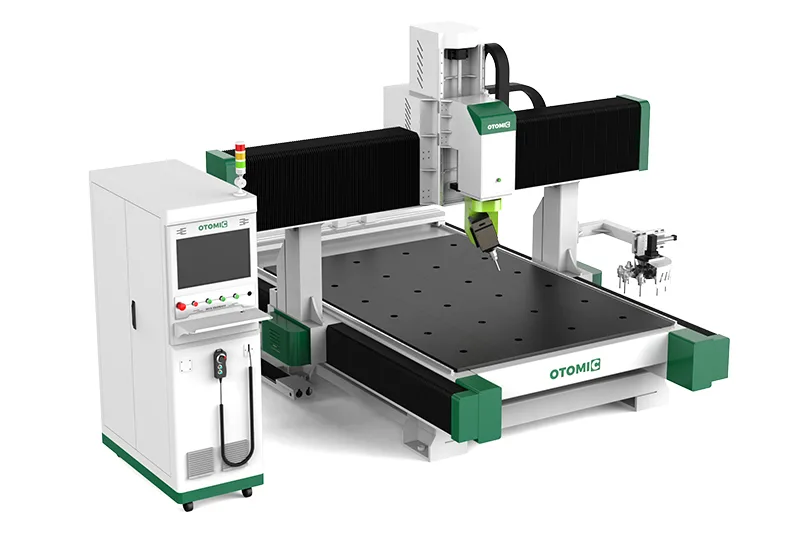

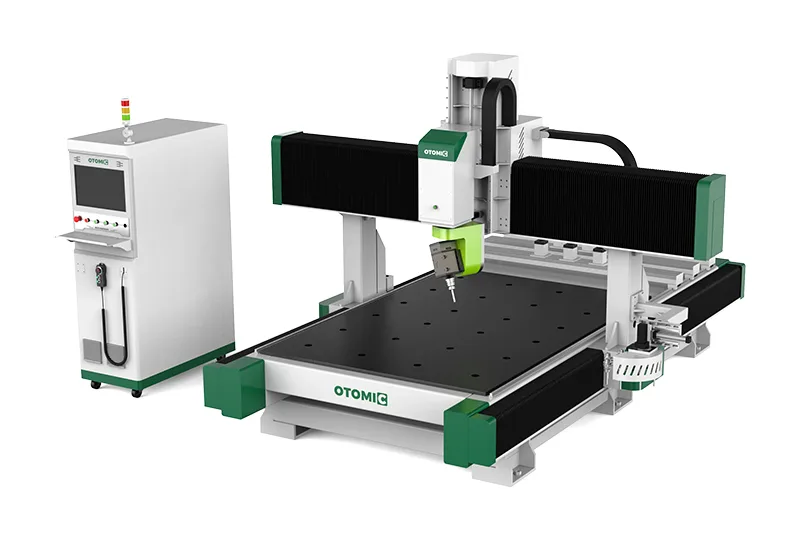

Gantry Moving 5 Axis CNC Router Center

The Gantry Moving 5-Axis CNC Router is a cutting-edge machine designed for precision and versatility in the woodworking and manufacturing industries.

Length & height are customizable subject to your project’s requirements.

$25,000.00 – $55,000.00

* Contact us for latest price for customized machine according to your project's requirements of table formats, functions, etc.

SKU: N/A Category: CNC Router 5 Axis

Features

Gantry-moving style construction: This 5 axis CNC router is characterized by its gantry-style construction, where the gantry holds the cutting tool while it moves along both the X and Y axes. Here’s a detailed description:
ATC system (Automatic Tool Changer): for continuous operation by automatically changing tools based on the settings programmed in the software.
Versatility in Materials: Designed for versatility, this CNC router can work with a variety of materials, including wood, plastic, composites, and non-ferrous metals. Its ability to handle diverse materials makes it suitable for a wide range of applications.

Stable and reliable operation, Versatile material compatibility, Efficient tool calibration;
Applications: Boat works, boat building, boat mold carving, hull plug cnc cut, deck cnc cut, other woodworking, etc.

General:

EW3 Moving Column Gantry 5 Axis CNC Machining Center
X, Y, Z axis travel	X axis：1300-2000mm
	Y axis：2000-6000mm
	Z axis：300-600mm
Spindle	HITECO 10KW/Changchuan 14KW
5 axis cutting head	HITECO/LX500
Tool magazine	Carousel tool changer with 8pcs HSK F63
Inverter	15kw Delta inverter
Control system	SYNTEC 610-E5 5 axis control system with RTCP functions
Driving system	X axis 1.3kw; Y axis 1.3kw*2; Z axis 1.8kw Japan YASKAWA servo motors
Work table	T-slot & Vacuum working table
Linear guide	X, Y axis: Taiwan 35#
	Z axis: Taiwan 30#
Reducer	Japan SHIMPO * 3
Water cooling system	Water cooler
Cables	Germany Igus cables with CE, cUL certificate
