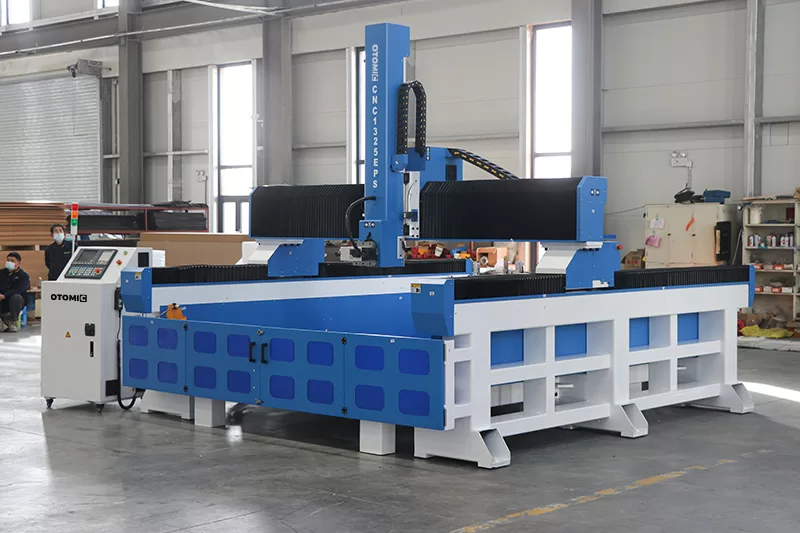

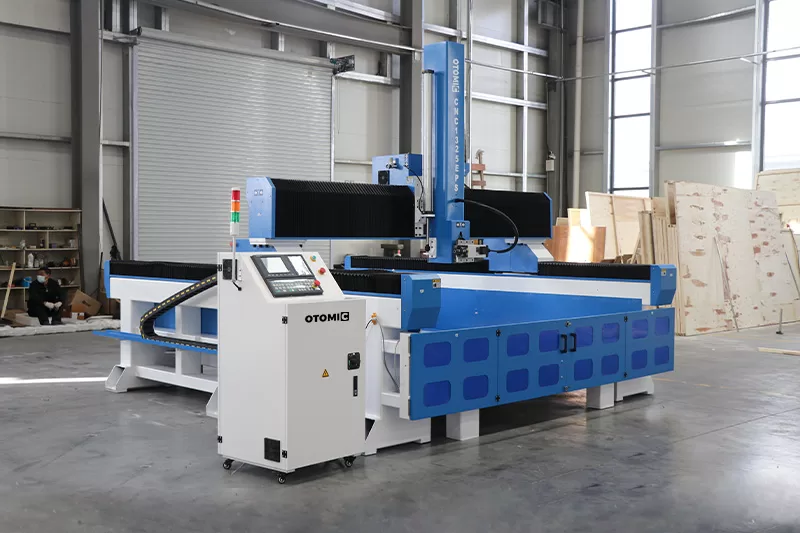

1325 EPS 4-Axis Foam CNC Router

This foam machine is equipped with 4 spindles to process various non-metallic materials, such as foam, Eps, wood and so on.

* Contact us for latest price for customized machine according to your project's requirements of table formats, functions, etc.

Adopting 6KW HQD air-cooling spindle, of which the speed can reach to 18000 rpm/min. It can ensure the stability of the machine when it is working.
With excellent import machine parts includes 850w YASKAWA servo motor, Japanese Omron limit, 7.5kw Fuling inverter, etc. Therefore, it can make a high processing procession.
It has a large T-slot working table – the size is about 1300*2500, and a large spindle power and working voltage, which can ensure a good efficiency.

Working Area	13002500800mm
Table Surface	T-slot working table
Inverter	7.5kw Fuling inverter
Max. Working Speed	25000mm/min
Spindle	6KW HQD air cooling spindle
Spindle Speed	18000RPM
Motor	850w YASKAWA servo motor
Voltage	380V/3ph/50hz
Reducer	Japanese Shimpo reducer
Limit switch	Japanese Omron limit
Lubrication system	1.5L large electric gear lubrication pump
Guarantee	One year from the date of commission
