3d Cnc Wood Design Machine 3 Axis 4 Axis Cnc Router For Cutting Carving Engraving

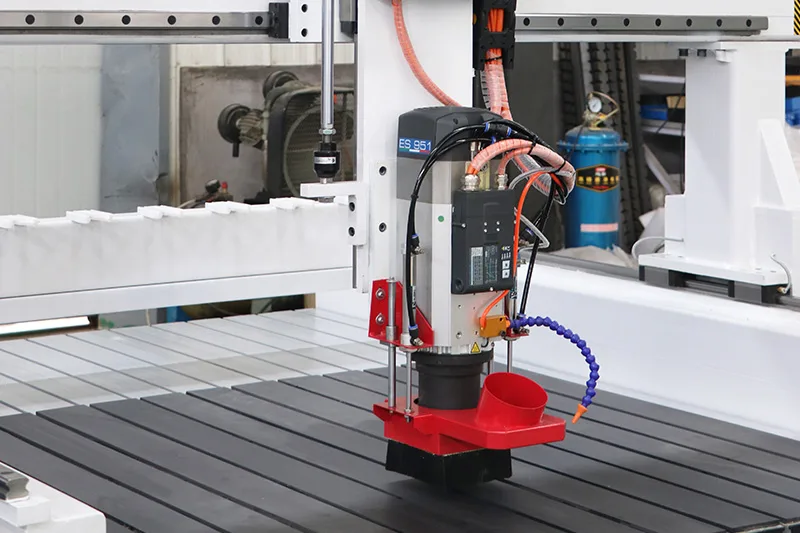

Lower Table Of 3d Cnc Wood Design Machine

3D CNC Wood Design Machine 3 Axis 4 Axis CNC Router for Cutting Carving Engraving

It is 3 Axis / 4 Axis 3D CNC Wood Design Machine with sinking table for processing thicker wood.
There are two types: ATC 3 Axis CNC router and Atc 4 axis cnc router;

$15,500.00

* Contact us for latest price for customized machine according to your project's requirements of table formats, functions, etc.

Get a Free Quote

Category: CNC Router 4 Axis

Features

Working area:1300mm*1300mm. The large working area can ensure a stable operation and give you more convenience when you process different materials with various sizes.

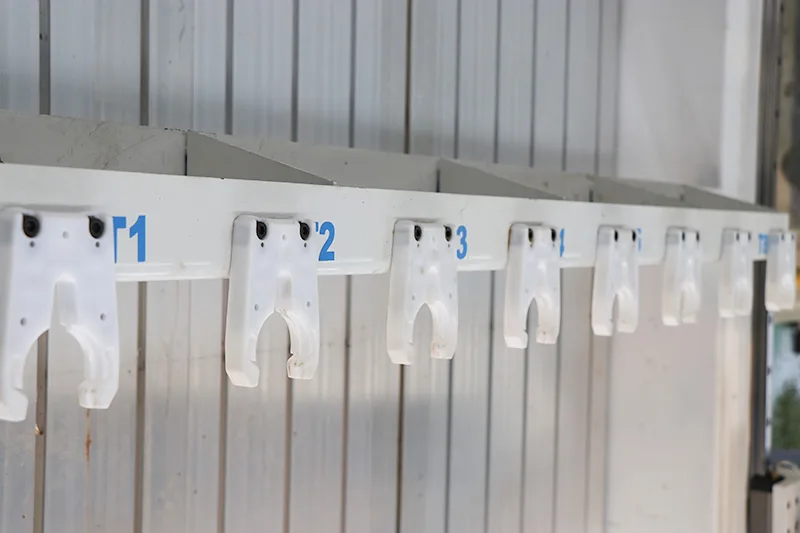

It adopts 8pcs linear automatic tool storage with sinking table, which could process thicker wood. And the fast tool change speed can save you more time.

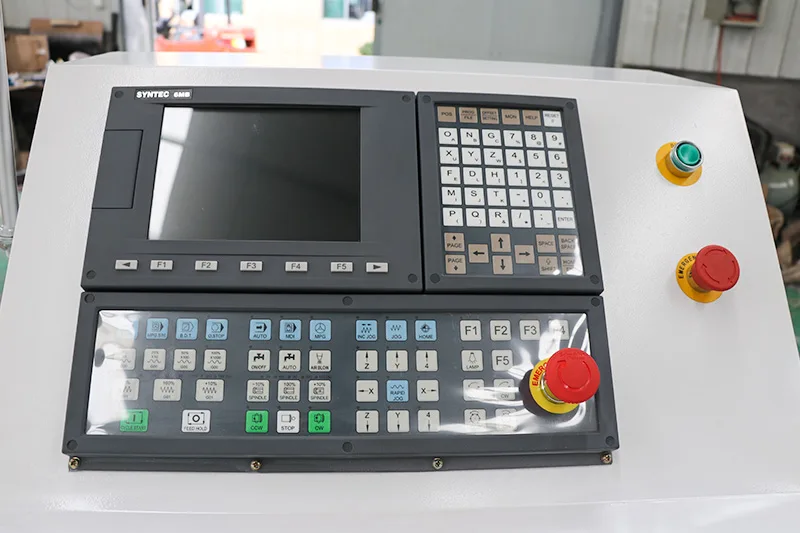

Taiwan SYNTEC control system with hand wheel makes it more easier to control the machine.
The 9kw air cooling spindle enable a high processing speed of 24000RPM.

Parameters

Description	Parameter
Working area	1300mmx1300mmx500mm
Operating System	Taiwan SYNTEC control system

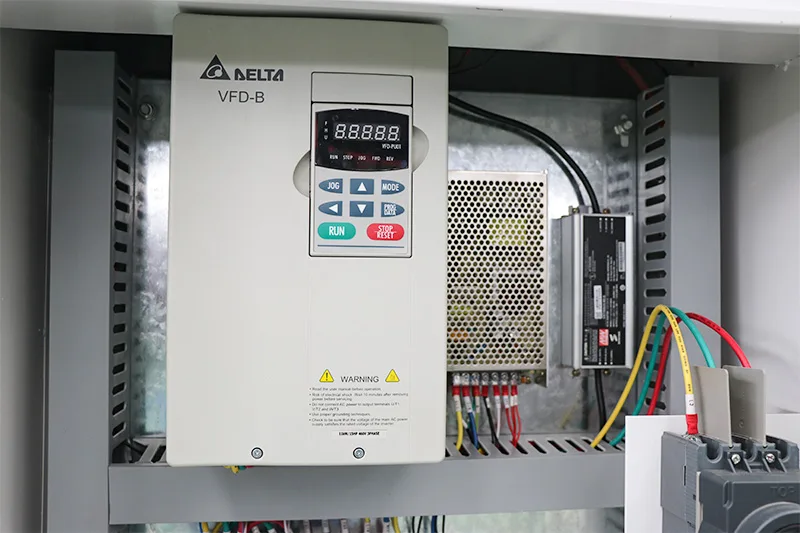

Inverter	11kw Taiwan Delta interver
Table Surface	T-slot table

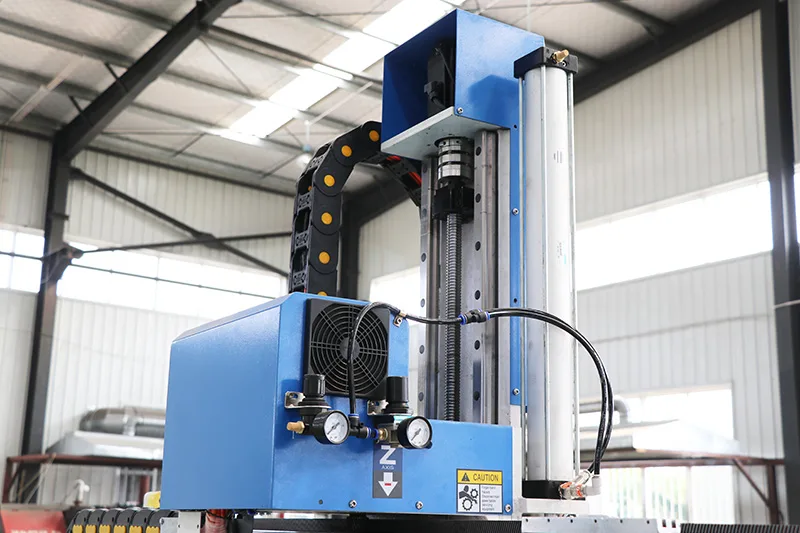

Z Structure	TBI Ball Screw
Limit switch brand	Omron
Spindle	9kw HSD air cooling spindle
Spindle Speed	0-24000RPM

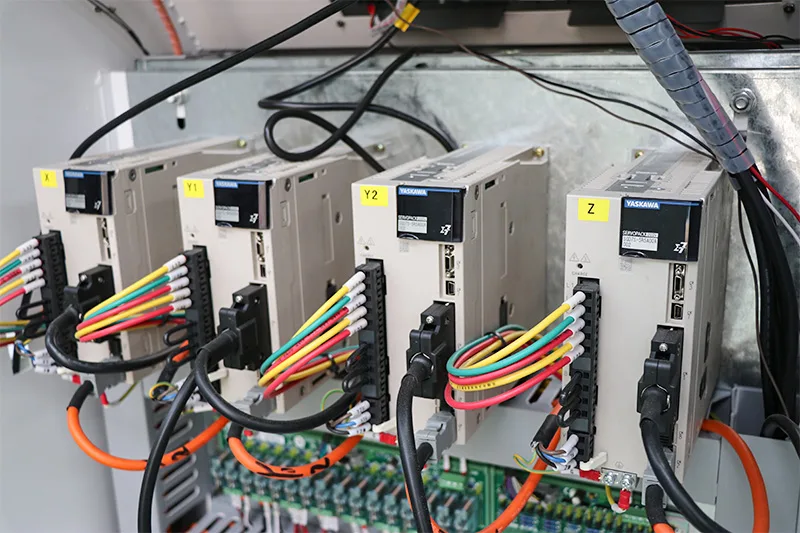

Motor and Drive	750w YASKAWA servo motor and driver
Voltage	AC380V,3phase
Machine special requirement	Countertop sinking 200mm
