Economical Granite CNC Machine, Granite Sink Cutout Machine for Counter Top, Sink Fabrication

High performance stone granite cnc machining center is good at counter top fabrication, granite sink cutting out, functions such as edge profiling / chamfering, stone slab cutting, stone engraving, and stone carving, etc.

$18,000.00 – $35,000.00

* Contact us for latest price for customized machine according to your project's requirements of table formats, functions, etc.

Get a Free Quote

Reference

Clear

SKU: N/A Categories: Stone CNC, Stone CNC Machine Center

Features

Functions: This granite cnc machine is designed for stone countertop edge profiling / chamfering, stone slab engraving, marble carving or cutting, digging, polishing, and grinding the wash basin sink.
Processing materials: quartz stone, marble stone, granite stone, artificial stone slabs, jade, blue stone, black stone, etc.

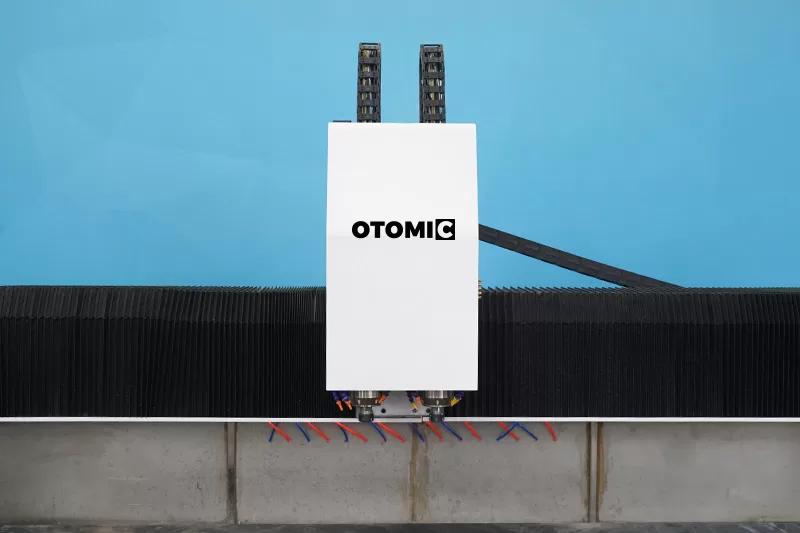

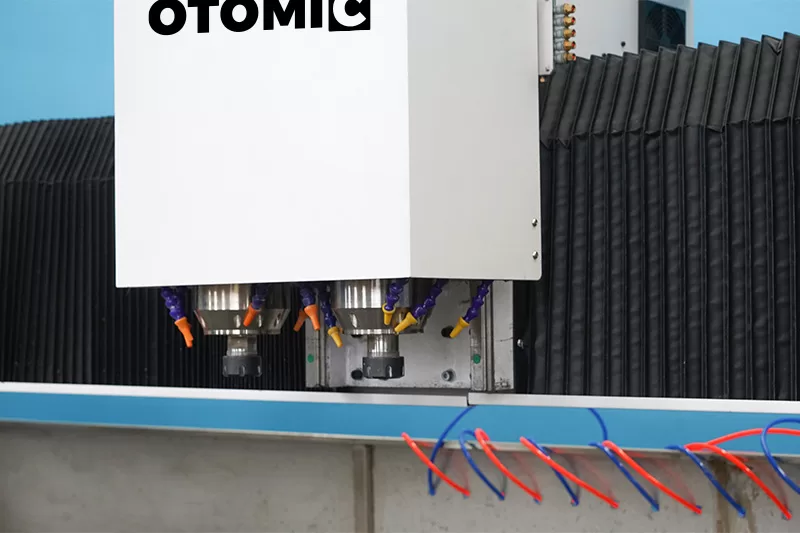

Two Spindles can be take into working when required, so no need to stop to change tool/bit;
Edging and engraving function can be switched in one-key operation, which is easy to operate and correspondingly improve processing efficiency.
A small footprint, which can greatly save your space.
Applications: Large murals, background walls, etc. Engraving, embossing, and hollowing stones can also be carried out.

Parameters

Working area	1500x3000x300mm
Voltage	380V/50Hz/3P
Spindle power	Shengfeng 5.5kWx2
Control system	Ncstudio 95A-3S
Working table	Phenolic board hard table with 8 suction cups
Reducer	Shimpo reducer
Inverter	5.5kW Best inverter

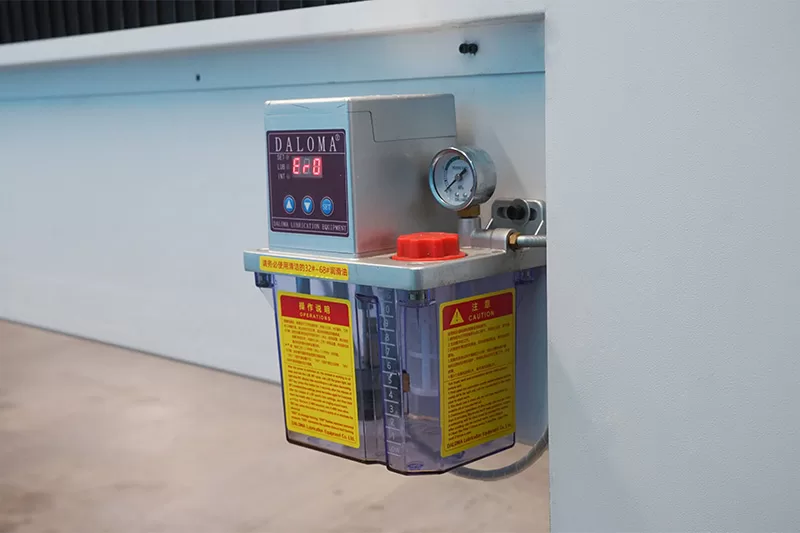

Lubrication	Automatic lubrication system
Vacuum pump	2.2kW double-stage vortex pump/3 kW water circulation pump

Video

Reference	Basic Two Spindle Granite CNC Machine for Granite Sink Cut Out, Polishing, Edge Beveling, Chamfer, Basic ATC Spindle Granite CNC Machine, Pro ATC Granite CNC Machine for Granite Sink Cut Out, Polishing, Edge Beveling, Chamfer
