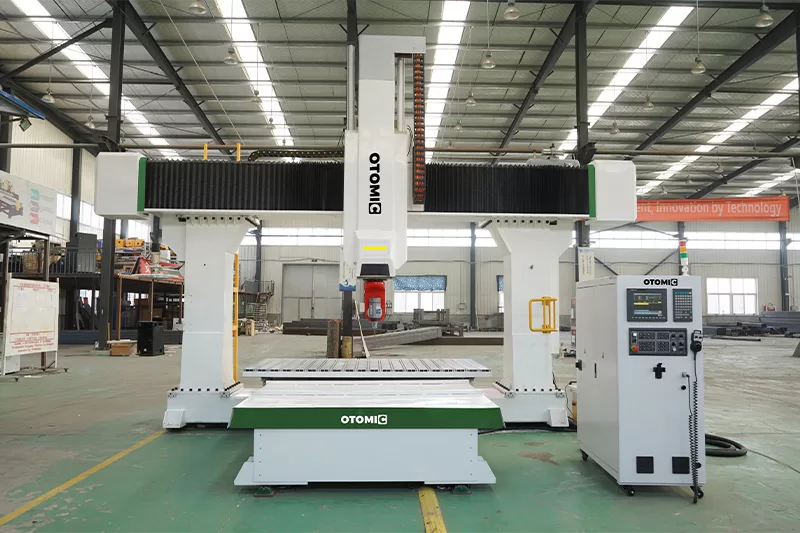

5 Axis CNC Wood Router Machine, 5 Axis CNC Router for Woodworking

Hot Sale 5 axis CNC router for woodworking, 3d mold/model working adopts SYNTEC control system which supports 5-8 axis linkage and has diversified control functions, performs a more precise 3d working.

$35,000.00 – $48,000.00

* Contact us for latest price for customized machine according to your project's requirements of table formats, functions, etc.

Get a Free Quote

SKU: N/A Category: CNC Router 5 Axis

Features

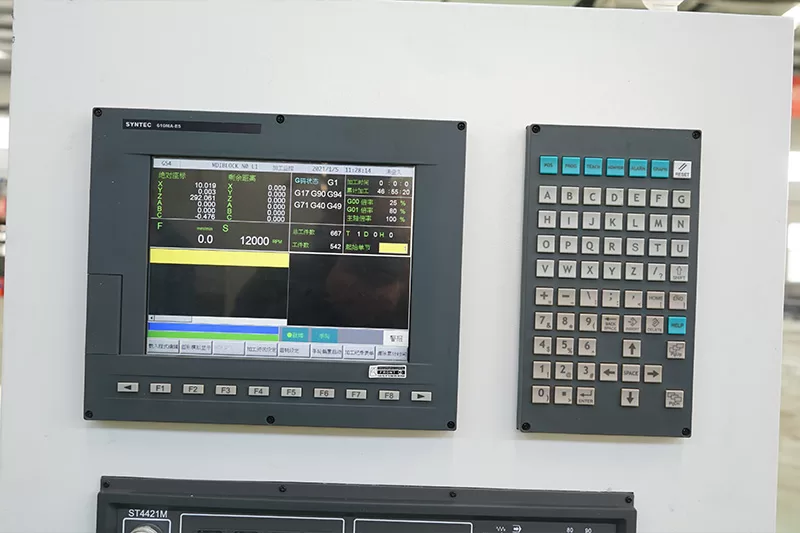

Using SYNTEC numerical control system, which ensures a high processing precision and fast speed.

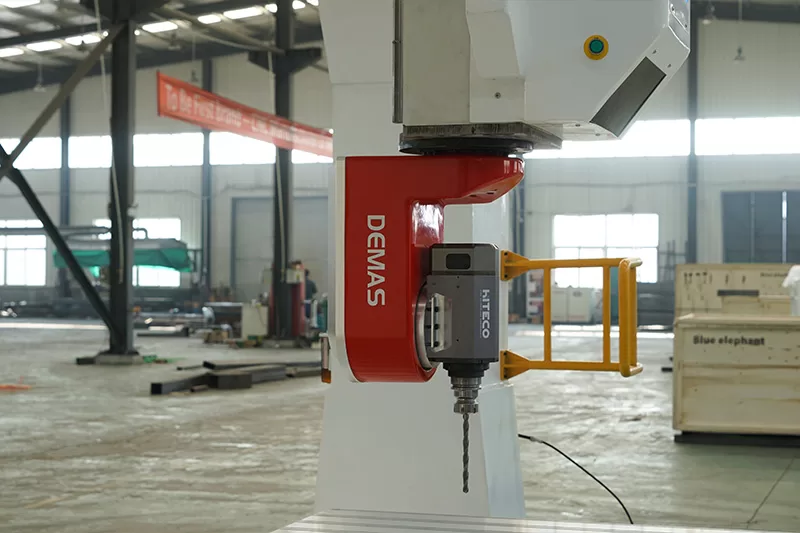

It adopts Japanese THK guide rail and German original swing arm to improve mechanical precision and strength.
The Z-axis stroke can be increased to 2.1 meters, which is very suitable for processing large three-dimensional curved surfaces.
The intelligent processing cross-border protection function can prevent mechanical collisions caused by excessive processing of design files.
Diversified control of processing speed, idling speed, cutting speed can be controlled, greatly improving the quality and processing efficiency of processed products.

Parameters

Name	Description
Working table	2500mm1300mm900mm
C travelling	±213°
A travelling	±120°
Beam spacing	4260mm
Beam Height	2150mm
Vacuum pump	Germany Becker pump
Speed	22000 RPM/min
Servo Motor	YASKAVA
Table	Vacuum table

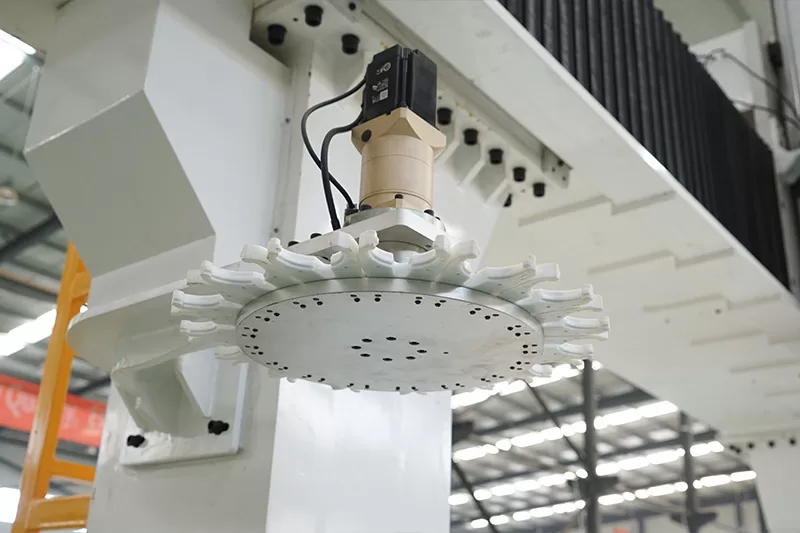

Tool magazine	16 positions Carousel Tool Storage
Control system	SYNTEC
Voltage	AC380V/60HZ
